Feature
The general application of load cells on elevators is bridge load cell and spoke load cell, their application characteristics are mainly distinguished in the installation method. Their working principle is the same, the load cell converts the weight into electric signal through the transmission cable and connects with the controller, and the electronic weighing is realized through the controller and the amplifier, A/D converter and microcontroller operation. When the weight in the car reaches or exceeds 95% or 102% of the set value, the full-load and overload relays in the controller will operate respectively and connect with the elevator control system to make the elevator run safely and reliably.

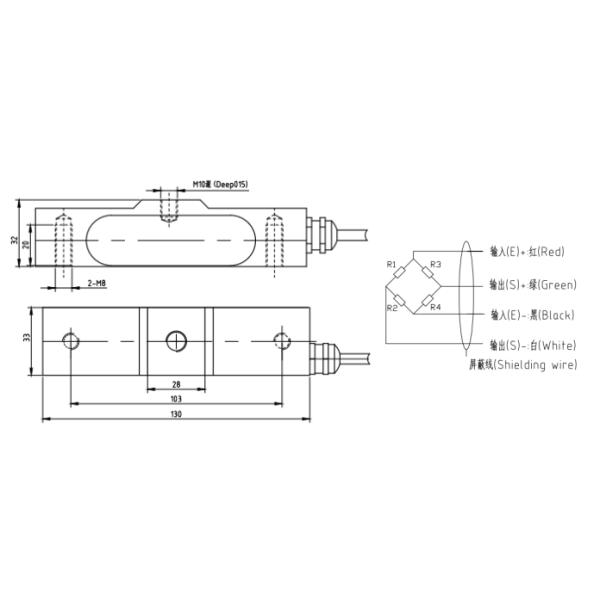

Dimension
Technical Parameter:
| Capacity | Kg | 800 |
| Sensitivity | mV/V | 2.0±0.05 |
| Accuracy | | ≤±0.05 |
| Creep(15min) | %FS | ≤±0.02 |
| Input Resistance | Ω | 1000±10 |
| Output Resistance | Ω | 1000±10 |
| Insulation Resistance | M Ω | ≥5000(100VDC) |
| Zero Balance | %FS | ≤±1 |
| Temperature Effects on Span | %FS/10℃ | ≤0.02 |
| Temperature Effect on Zero | %FS/10℃ | ≤0.02 |
| Rated Temperature Range | ℃ | -10～+60 |
| Operating Temperature Range | ℃ | -20～+80 |
| Proposed Excitation Voltage | V | 6～12 |
| Allowed Excitation Voltage | V | 18 |
| Safe Overload | %FS | 120 |
| Ultimate Overload | %FS | 150 |
| Protection | | IP65 |
| Cable specification | mm | Ф5 |
| Cable length | m | 1.4 |
| Material | | Aluminum Alloy |
Application
Production Process
Company Profile
Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
Package & Shipment
