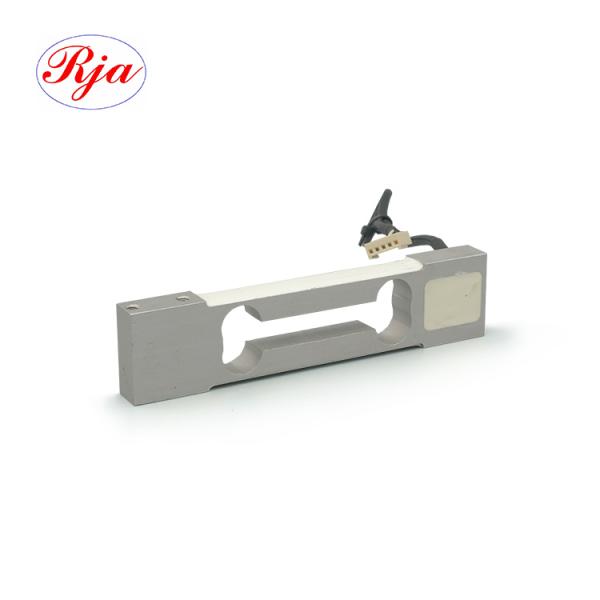

IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg

Name: IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg
Brand: ruijia
Price: 7 USD

Quality IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg for sale

Brand Name : ruijia

Model Number : RJ-6520

Place of Origin : China

MOQ : 1pc

Price : USD7/pc

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 Piece/Pieces per Month

Delivery Time : 2-4 weeks

Packaging Details : Standard export packaging

Capacity : 0.3/0.6/1.2/2/3 kg

Sensitivity : 1.1±0.2 mV/V

Accuracy : ±0.02

Creep : ≤±0.01 %FS(15min)

Input resistance : 406±20 Ω

Output resistance : 350±5 Ω

Rated Temperature Range : -10~+60℃

Operating Temperature Range : -20~+80 ℃

Cable : φ3

Cable length : 0.4 m

Ultimate overload : 150%FS

Protection class : IP65

Contact Now

IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg

Features

Single point load cells are one of the main types of load cells and are most commonly used in small to medium sized platform weighing applications. This insensitivity to out-of-center loads is a function known as "force-time compensation". The ability to use only one load cell instead of four makes single point load cells a very economical solution for dozens of applications, including but not limited to: weight scales, bench scales, platform scales, hopper and container weighing, parts counting, packaging scales, inspection weighing, OEM products, retail scales, conveyor scales, production processes, low cost applications, and medical scales.

Technical parameters:

Capacity	Kg	0.3/0.6/1.2/2/3
Sensitivity	mV/V	1.1±0.2
Accuracy	%FS	≤±0.02
Creep(15min)	%FS	≤±0.01
Input Resistance	Ω	406±20
Output Resistance	Ω	350±5
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	≤±2
Temperature Effects on Span	%FS/10℃	≤0.02
Temperature Effect on Zero	%FS/10℃	≤0.02
Rated Temperature Range	℃	-10～+60
Operating Temperature Range	℃	-20～+80
Proposed Excitation Voltage	V	6～12
Allowed Excitation Voltage	V	18
Safe Overload	%FS	120
Ultimate Overload	%FS	150
Protection		IP65
Cable specification	mm	Ф3
Cable length	m	0.4
Material		Aluminum Alloy

Dimension

IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg

Aluminum Material

Surface Anodized Treatment

Silicon Rubber Sealing

Suitable for electronic scales electronic Weighing system

Appliaction

IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg

Production

IP65 Single Point Load Cell Customization Platform Scales Sensor 5kg 10kg 20kg 50kg 100kg 150kg

Company Profile

Xi'an Ruijia Measurement Instrument Co.,Ltd is established in 2005, mainly engaged in the design, production, sales and technical services of force sensors and related electronic products. Our headquarters is located in Xi'an High-tech Zone, Jinye First Road, No. 81, and its branch is located in Hantai District, Hanzhong City, Shaanxi Province.
We mainly undertake high-precision load cells for aluminum and steel parts with ranges from 1kg to 50t, and pressure sensors with range from 1Mpa to 200Mpa. We have independently developed a series of electronic balance load cells, which can meet the requirements of 2kg, 3kg, 5kg. The products have been well received by many customers at home and abroad, and have been awarded the honorary title of Xi'an High-tech Enterprise. The self-developed oil well drilling, fracturing and cementing pressure sensors not only have independent and independent intellectual property rights, but also have received strong support from National Fund. The products have reached similar technical standards in Europe and the United. Our company also develops OEM products according to the special requirements of customers, and it is our aim to meet all the requirements of customers.
Through years of development, our company has its own complete set of system in technology and management. Our products are of high quality, many varieties and specifications, and strong matching. Most of our products are exported to overseas markets and have long gone to the praise and trust of our customers.
